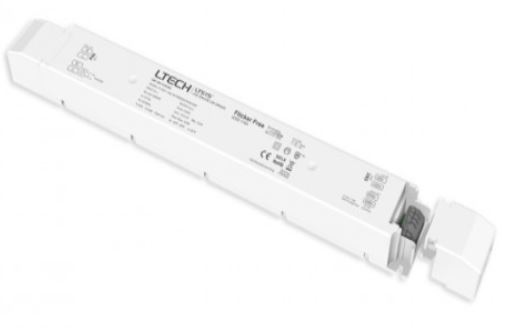

0-10/Push Transformator 150w 24v DC

LM-150-24-G1A2

LED Intelligent Driver

– Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
– Dimming interfaces: 0-10V(1-10V/10V PWM/RX), Push DIM.
– Automatically recognize 0-10V and 1-10V input signals.
– Ultra-low consumption of 0-10V ports < 0.05mA.
– Dimming range: 0~100%, LED dimming starts at 0.1%.
– Flicker-free with high frequency exemption level in 0~100% dimming process.
– With soft-on and fade-in function, bring more comfortable visual experiences.
– High-performance drivers:  Effeciency 93%, PF>0.98, THD<6%.
– Dimming interfaces have photoelectric isolation that are compliant with the latest safety standards and more secure and reliable.
– Comply with the ERP directive of  EU energy efficiency, stand-by power consumption0.5W.
– Innovative thermal management technology, has intelligent protection of driver lifetime.
– Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
– The design of dismountable end covers is for convenient adjustments of length of drivers.
– Suitable for lamp applications of indoor I/II/III types.
– Up to 50000-hour life time.
– 5 years warranty (Rubycon Capacitor).
