Art nr: ESB101

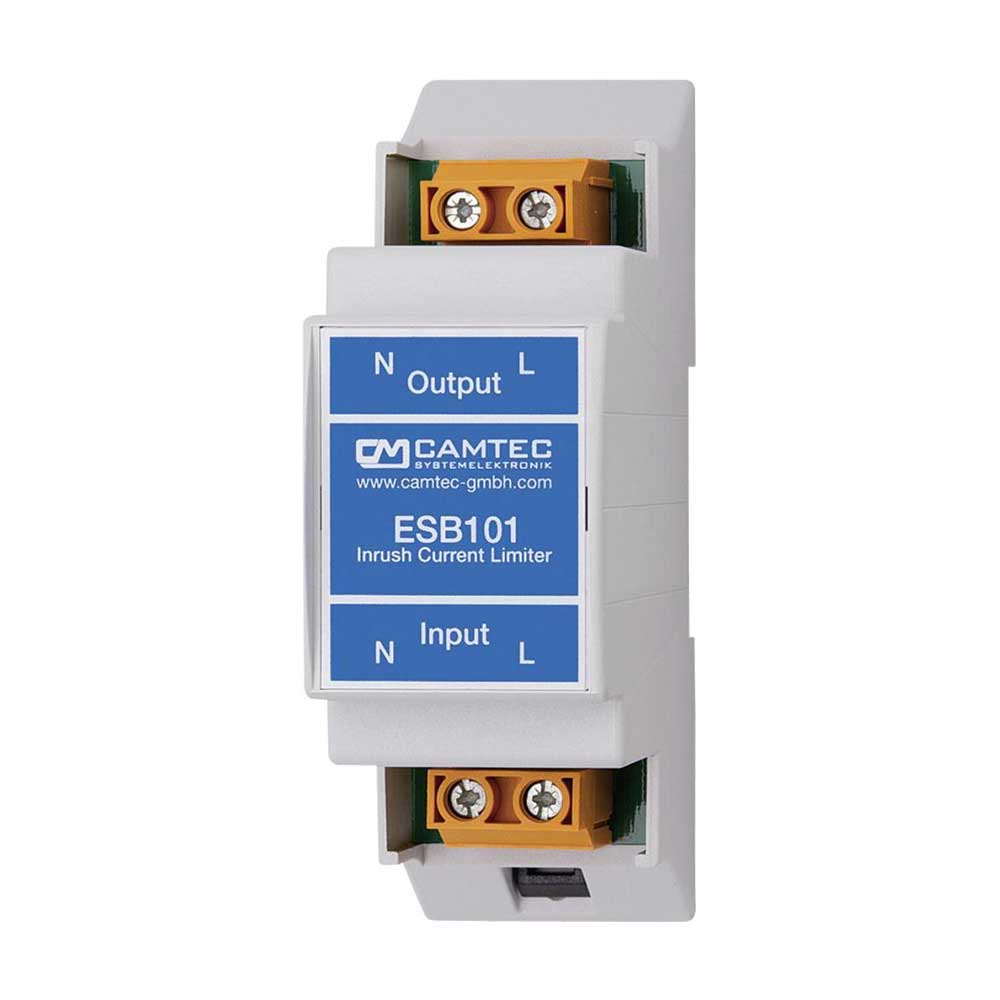

ESB101 Start current limiter
Input voltage range 184 ~ 265VAC
DIN rail mounting, TS35
Integrated bypass relay
IP20, UL94V-0 enclosure
ESB101 is designed to withstand high starting currents during the time it is generated by one
switched power supply or LED driver. The starting current limiter can handle max. 16A at
continuous use. The total continuous primary current from all power supplies alt. LED
drive must not exceed 16A. Note that ESB101 only limits the starting current at
switching on the supply voltage and does not protect against possible current spikes during operation.
| Frekvens: | 16 ⅓ – 440Hz |
|---|---|
| Matningsspänning: | 184-265VAC |
| Minsta rekommenderade säkring: | B13A |
| Säkerhet och EMC: | Möter IEC/EN60950-1, cUL60950 EN55022 class B, EN61000-6-2,3 |
| Temperaturområde: | -40°C…..+70°C |
| Vikt | 121g |
| Max. kontinuerlig ström: | 16A |
| Strömförbrukning: | 19mA |
| Peak ström vid begränsning: | 48A (+/-6%) |
| R.M.S. ström vid begränsning: | 33.9A (+/-6%) |
| Max. kapacitiv last: | 6000uF |
| Max. strömbegränsningstid: | 300ms (+/-50ms) |
| Startströmsbegränsningscykler: | 3 cykler per minut (påslagning av matningsspänningen) |
| Överbelastningsskydd: | Termosäkring |
| 0-10 | Nej |
| Fast installation | Ja |
| Anslutning | Skruvplint, 0,5~6mm² |
| PUSH | Nej |
| DALI | Nej |
